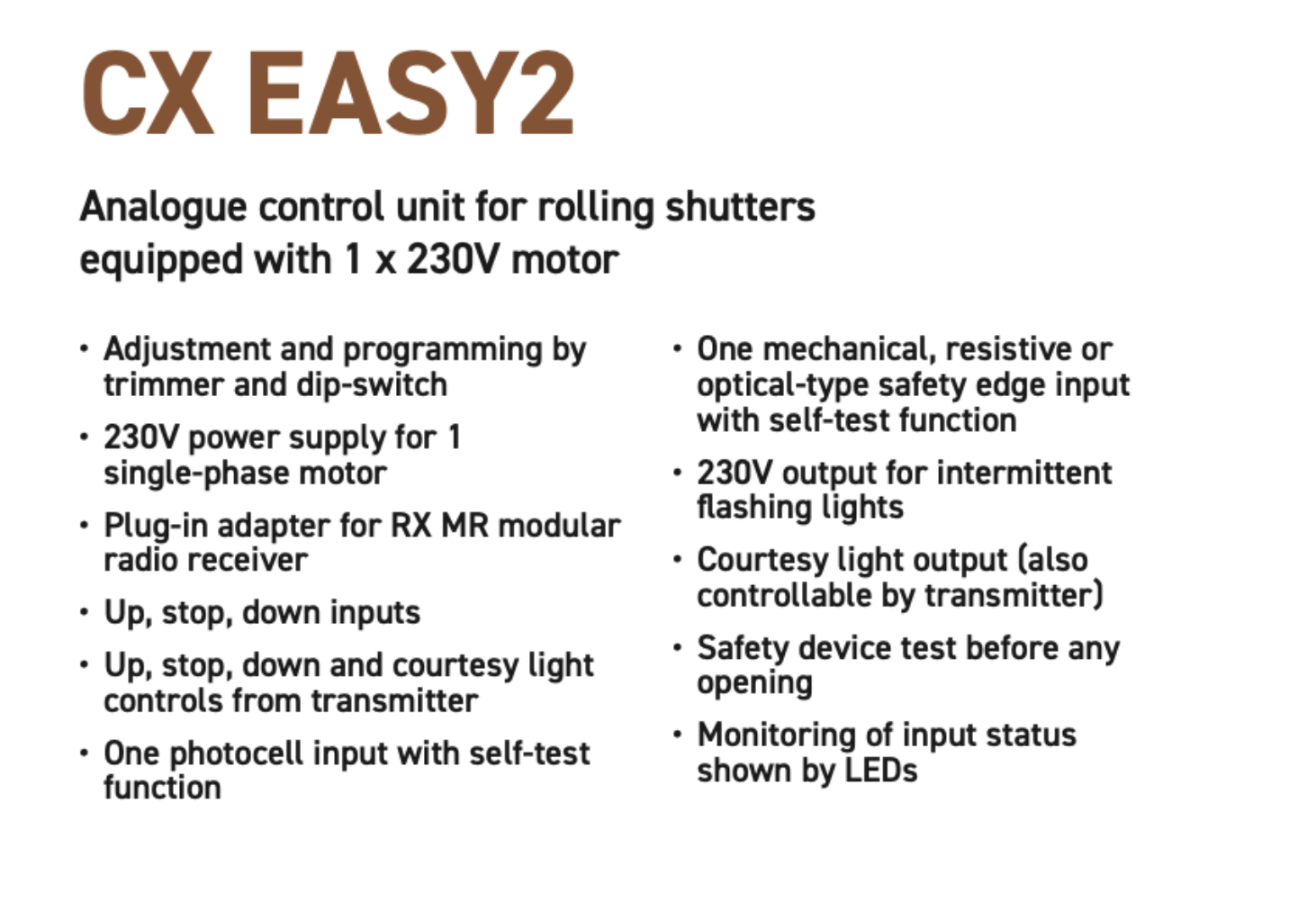

The CX Easy/V2 Easy Top is the perfect control panel for roller shutter doors. It allows your installer to fit your roller shutters with ease. The Easy Top is perfectly accompanied with either our KIBO keypad or NEW wireless keyswitch. If you would like any more information and further deals please contact us directly!
Programming achieved using program buttons and display
230V power supply for 1 single-phase motor
Plug-in adaptor for modular radio receiver MR2
Up, stop, down inputs
Up, stop, down and courtesy light controls from transmitter
1 photocell input with self-test function
1 mechanical, resistive or optical-type safety edge input with self-test function
1 emergency (fire alarm / alarm) input
24V accessory power supply output
230V flashing light/courtesy light output
Optical-type safety edge power adjustment output
Plug-in terminal boards
Monitoring of input status shown by display
Access the full technical manual here to explore detailed specifications, installation guidance, and maintenance instructions. CX EASY2 MANUAL
